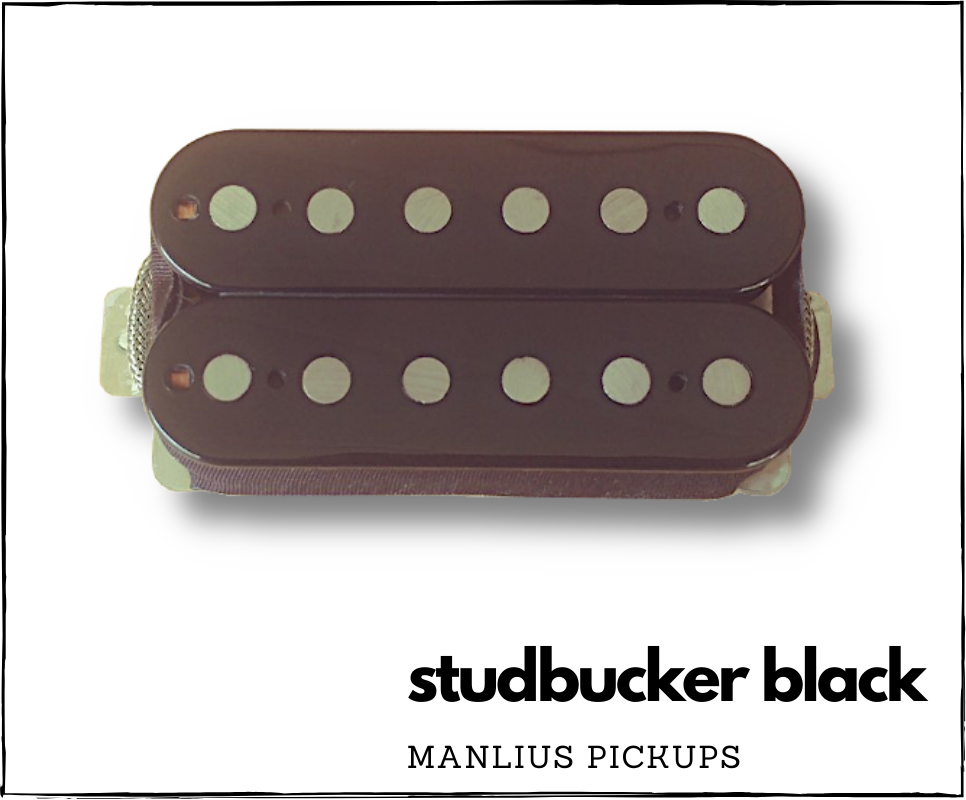

Stud-Bucker

$ 95.00

Rod Magnet Clarity and Humbucker  Warmth

The Stud-Bucker is a specially designed humbucker pickup which is a direct drop in replacement for any humbucker equipped guitar.  Instead of using the common bar magnet setup found on most humbuckers, the Stud-Bucker uses a Fender style AlNiCo 5 rod magnet setup.  This offers a more focused magnetic field, which produces a stronger response from the high end and upper mid frequencies.  Nice and chimey and clear, but still with classic humbucker performance and mid range push.  You get a great driven tone that retains more clarity than a typical humbucker pickup, coupled with a clean tone that has great single coil style jangle and top end response.  Clean and clear when asked, big and warm when pushed, the Stud-Bucker offers great hybrid tones for a variety of styles.

Built by hand in Syracuse NY, the Studbucker features classic Manlius design elements, including hand scatter-winding, american sourced magnets, vintage steel alloy parts, universal depth base-plate legs, maple spacers, and light wax potting for consistent performance.



General Specs

  • Baseplates - pure nickel silver with universal depth legs
  • Magnets - AlNiCo V rod, .650"
  • Wire - Vintage SPN
  • Covers - pure nickel silver, plated or unplated

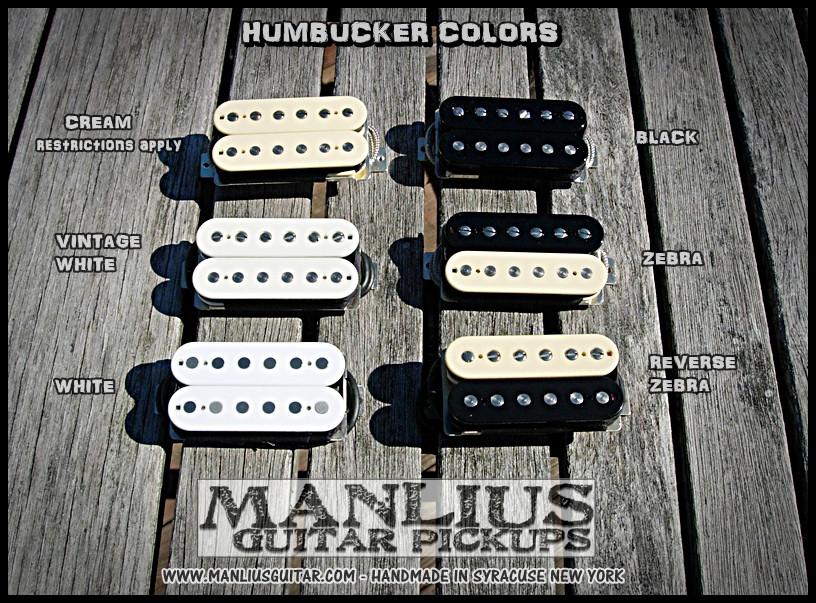

  • Bobbins - high sheen and field polished, various colors
  • Spacing - Standard and wide F spacing available on all models
  • Nickel plated internal steel shim
  • Conductor - vintage braid two conductor or low impedance 4 conductor
  • Winding - hand scatter-wound with similar coils
  • Aging - available at no additional cost
  • DC 7.5k neck ; 8.3k bridge
